Staff / Cloud / Images

Staff panel images page has all the functionality of Enduser Images and some extra functionality described below:

Image details

On staff panel image details page beside the OVERVIEW we have two new tabs FLAVORS ASSIGNMENT and AUDIT LOG.

../../_images/image-details-overview.png

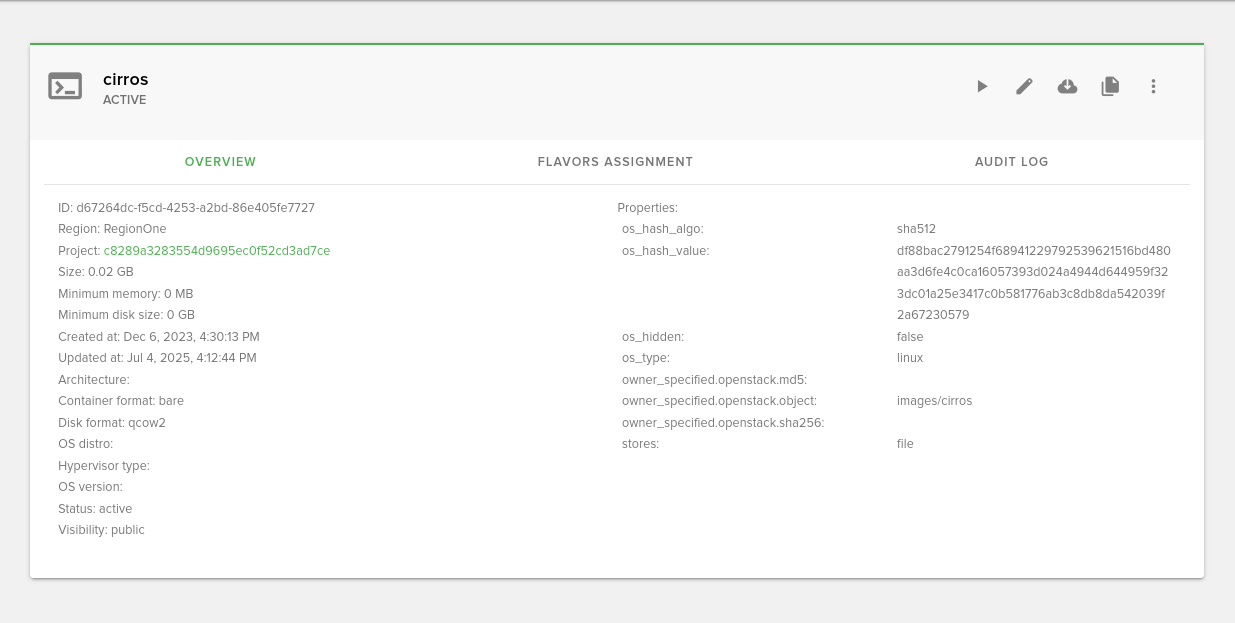

Overview tab

On the overview tab besides the same information as in enduser panel you can also see the Project ID of the image.

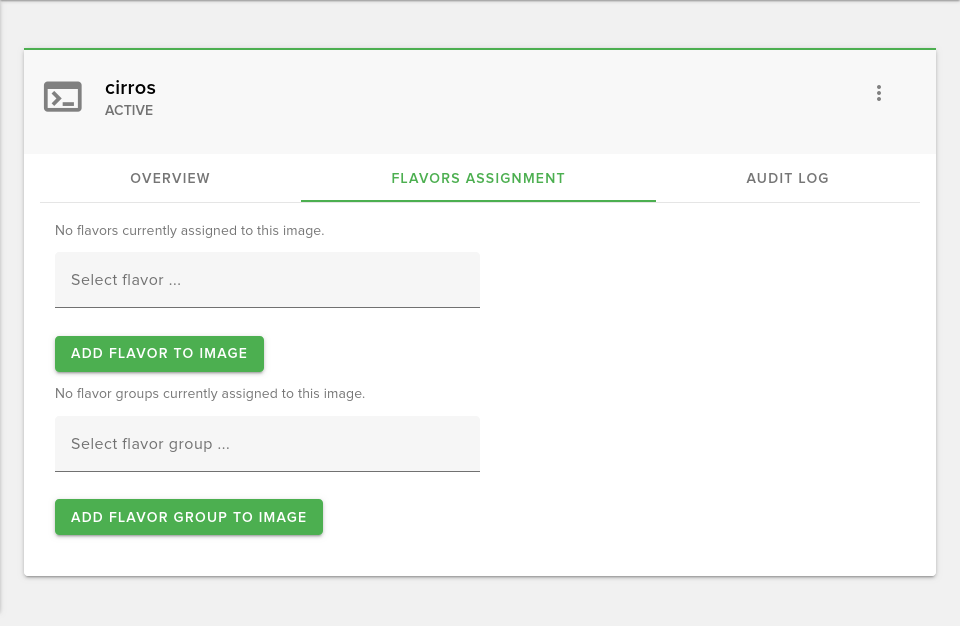

Flavors assignment tab

../../_images/image-details-flavors-assignment.png

This tab allows you to assign Flavors and Flavor groups to the image. If the image has assigned Flavors or Flavor groups you will be limited to the assigned Flavors or Flavors in the assigned Flavor groups when attempting to create an instance using the image.

Audit log tab

../../_images/image-details-flavors-assignment.png

The audit log tab shows activity log entries related to the image. Here you can see a history of all actions on this image and who performed them.

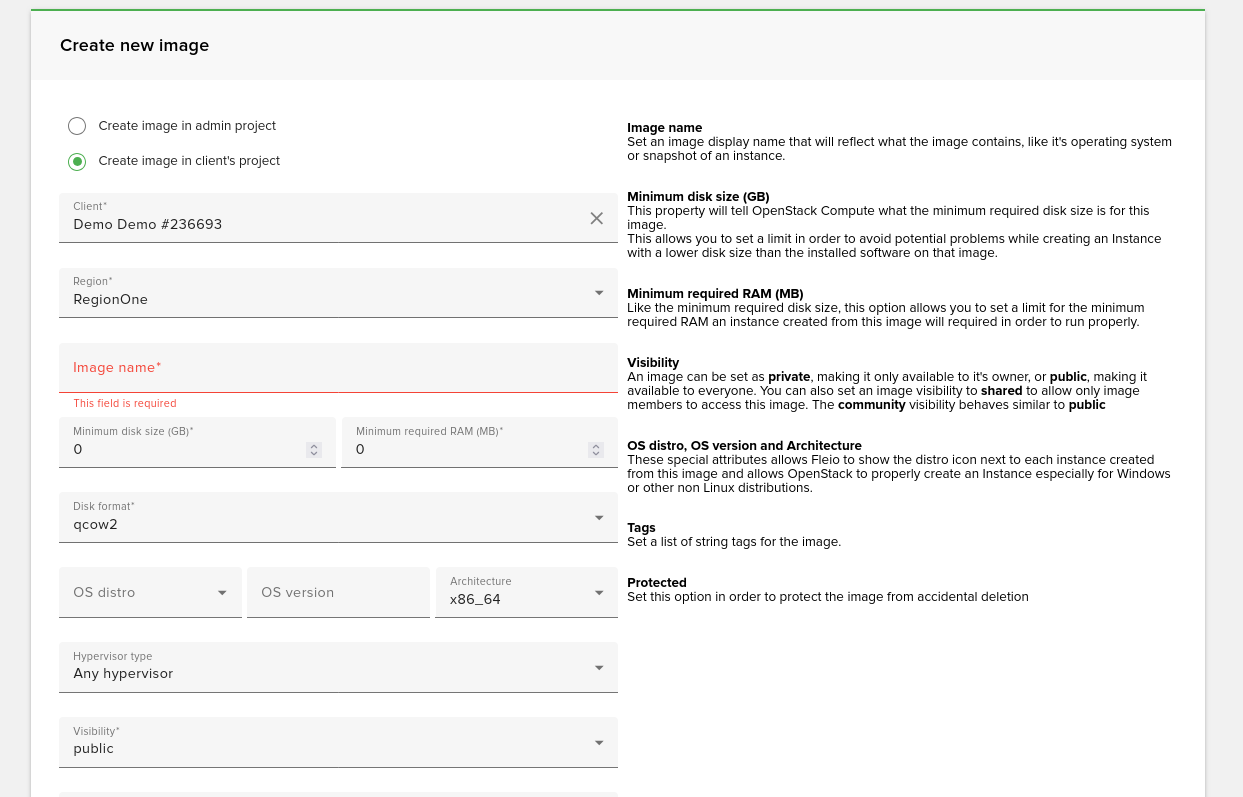

Create new image

../../_images/create-image.png

The create image dialog is similar to the Enduser panel dialog, however a Staff user can create an image in a specific client project or in admin project.

The Staff user is also able to set image visibility to public.

Updating an image

To update an image, click the edit button from image actions. You will be redirected to a new page with two tabs:

  • Edit Image: edit the same fields as in the create image page

  • Properties: set or remove custom properties for the image

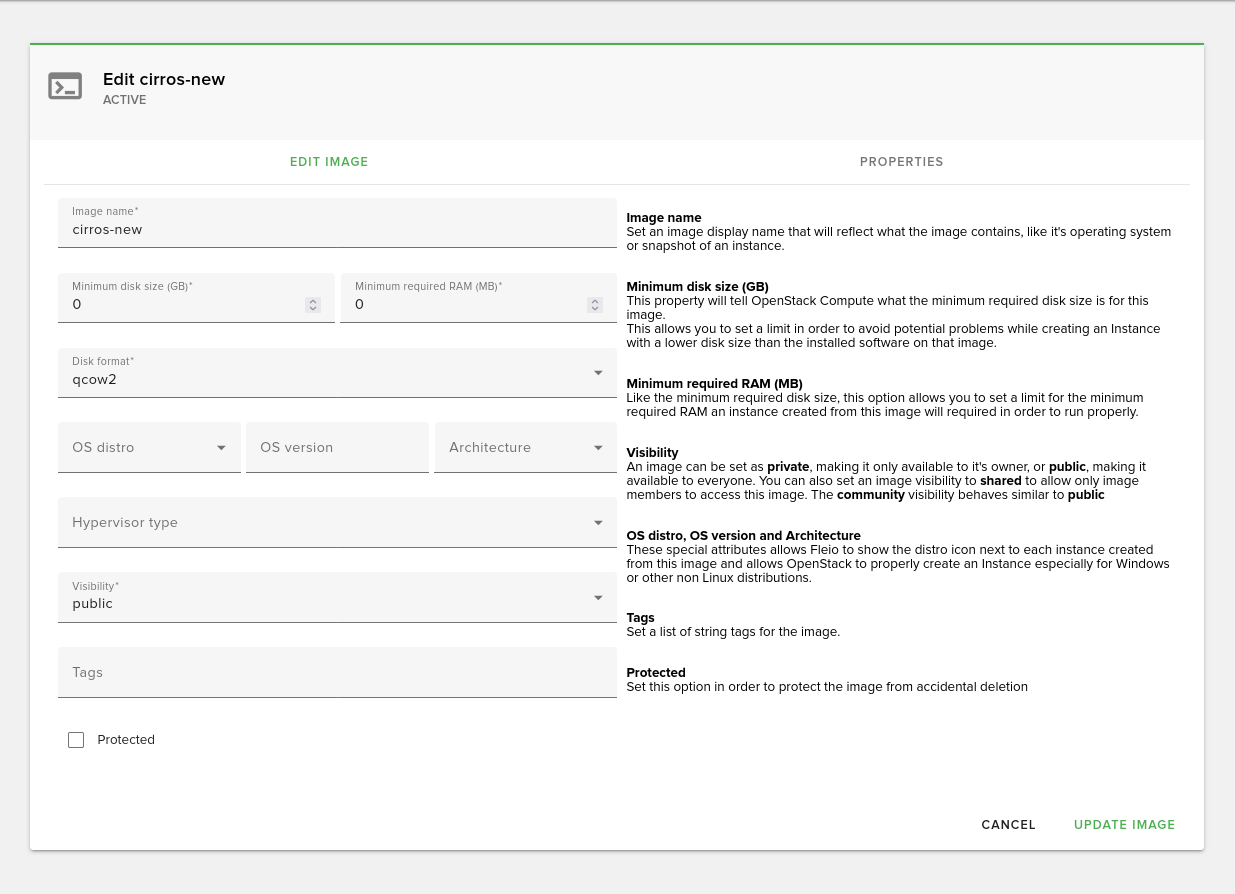

Edit Image tab

../../_images/image-edit-edit-image.png

On this tab you can change some attributes of the image like Visibility, Image name …

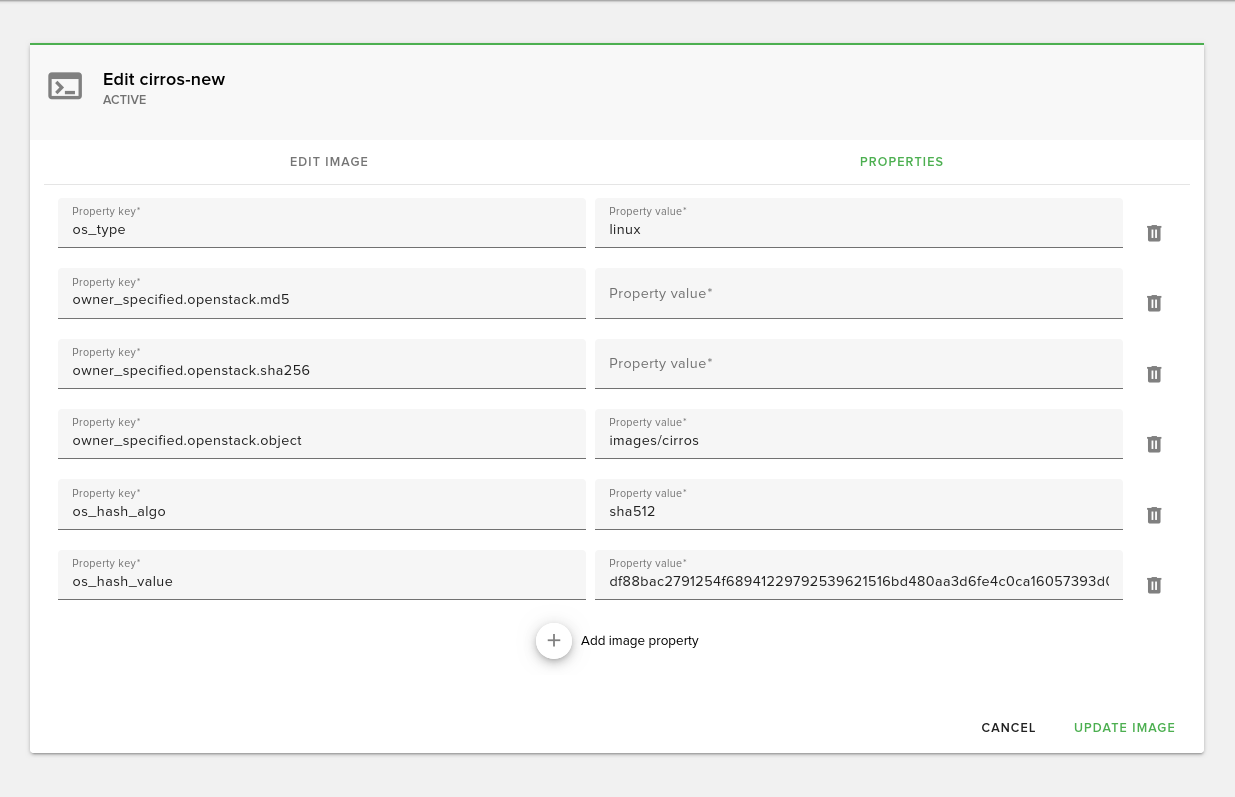

Properties tab

../../_images/image-edit-properties.png

Here you can add custom properties for the image that will be saved in the properties key from the image object. You can add new fields by clicking the Add image property button and remove them by clicking the Delete property button on the right side of each property.
